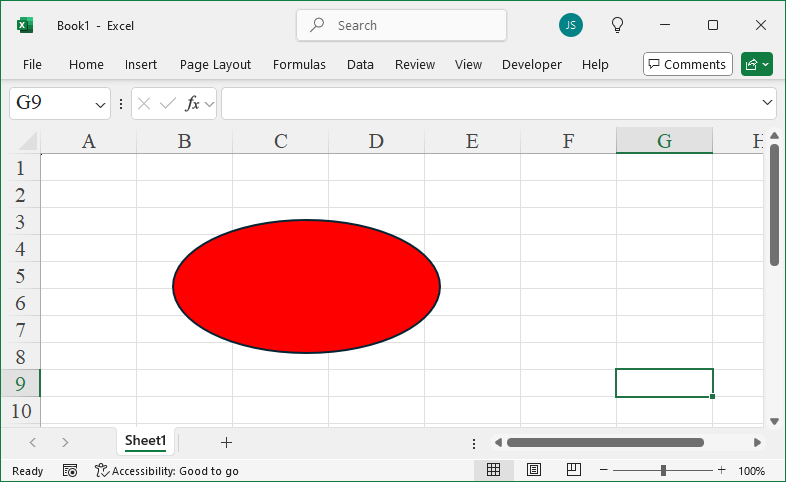

How To Set Face Properties Using xlwings? – Solid Fill

Method

In Excel, a face is represented by the `FillFormat` object. You can access this object via the `Fill` property of a `Shape` object and then programmatically set its properties.



You can specify the color using the `ForeColor` property and apply a solid fill using the `Solid` method.



shp=sht.api.Shapes.AddShape(9, 100, 50, 200, 100)

ff=shp.Fill

ff.ForeColor.RGB= xw.utils.rgb_to_int((255,0,0))

Sample Code

#Area properties - Solid color fill

import xlwings as xw    #Import xlwings package

app=xw.App()
bk=app.books.active   #Get the active workbook
sht=bk.sheets.active    #Get the active worksheet

shp=sht.api.Shapes.AddShape(9, 100, 50, 200, 100)
ff=shp.Fill
ff.ForeColor.RGB= xw.utils.rgb_to_int((255,0,0))

#bk.save()
#bk.close()
#app.kill()

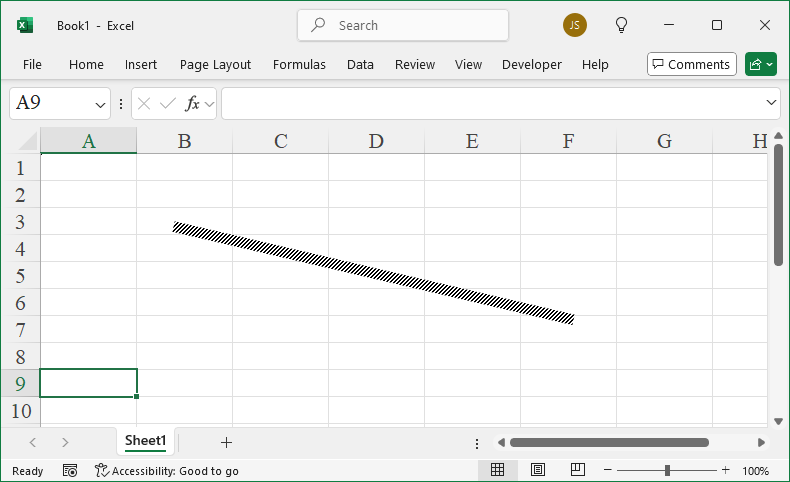

How To Set Line Properties Using xlwings? – Pattern Fill

Method

You can apply a pattern fill to a line object using the `Pattern` property of the `LineFormat` object. This property sets or returns an `MsoPatternType` enumeration value, which defines the pattern of the fill.



Name	Value	Description
msoPatternCross	51	Crosshatch pattern
msoPatternDarkDownwardDiagonal	15	Dark downward diagonal
msoPatternDarkHorizontal	13	Dark horizontal lines
msoPatternDarkUpwardDiagonal	16	Dark upward diagonal
msoPatternDarkVertical	14	Dark vertical lines
msoPatternHorizontal	49	Horizontal lines
msoPatternVertical	50	Vertical lines
msoPatternSmallGrid	23	Small grid pattern
msoPatternWave	48	Wavy lines
……



shp=sht.api.Shapes.AddLine(100, 55, 400, 125)

shp.Line.Weight=8

shp.Line.Pattern=16    #Set pattern fill for line segments

Sample Code

#Line Properties - Pattern Fill

import xlwings as xw    #Import xlwings package

app=xw.App()
bk=app.books.active   #Get the active workbook
sht=bk.sheets.active    #Get the active worksheet

shp=sht.api.Shapes.AddLine(100, 55, 400, 125)
shp.Line.Weight=8
shp.Line.Pattern=16    #Set pattern fill for line segments

#bk.save()
#bk.close()
#app.kill()

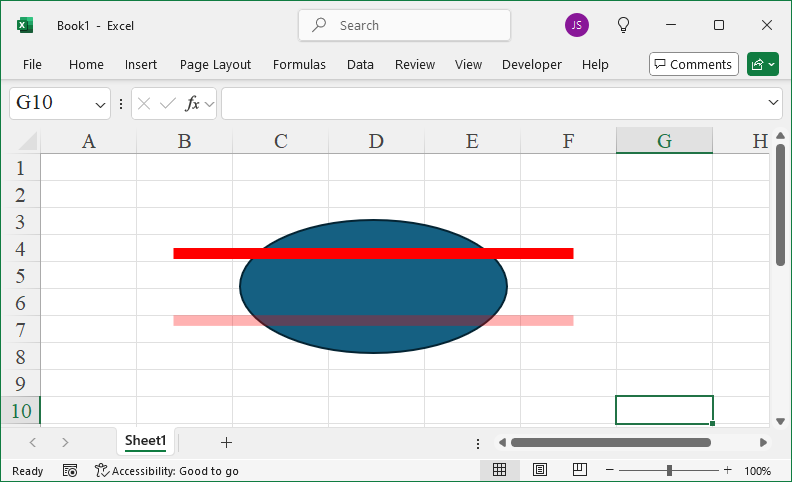

How To Set Line Properties Using xlwings? – Transparency

Method

You can set or get the line’s transparency using the `Transparency` property of the `LineFormat` object. The value ranges from 0.0 (opaque) to 1.0 (fully transparent).



shp2=sht.api.Shapes.AddLine(100, 125, 400, 125)    #Second line segment

shp2.Line.Weight=8    #Line width

shp2.Line.ForeColor.RGB=xw.utils.rgb_to_int((255,0,0))    #Red

shp2.Line.Transparency=0.7    #Transparency 0.7

Sample Code

#Line properties - Transparency

import xlwings as xw    #Import xlwings package

app=xw.App()
bk=app.books.active   #Get the active workbook
sht=bk.sheets.active    #Get the active worksheet

sht.api.Shapes.AddShape(9, 150, 50, 200, 100)    #Elliptical area
shp=sht.api.Shapes.AddLine(100, 75, 400, 75)    #First line segment
shp.Line.Weight=8    #Line width
shp.Line.ForeColor.RGB=xw.utils.rgb_to_int((255,0,0))    #Red

shp2=sht.api.Shapes.AddLine(100, 125, 400, 125)    #Second line segment
shp2.Line.Weight=8    #Line width
shp2.Line.ForeColor.RGB=xw.utils.rgb_to_int((255,0,0))    #Red
shp2.Line.Transparency=0.7    #Transparency 0.7

#bk.save()
#bk.close()
#app.kill()

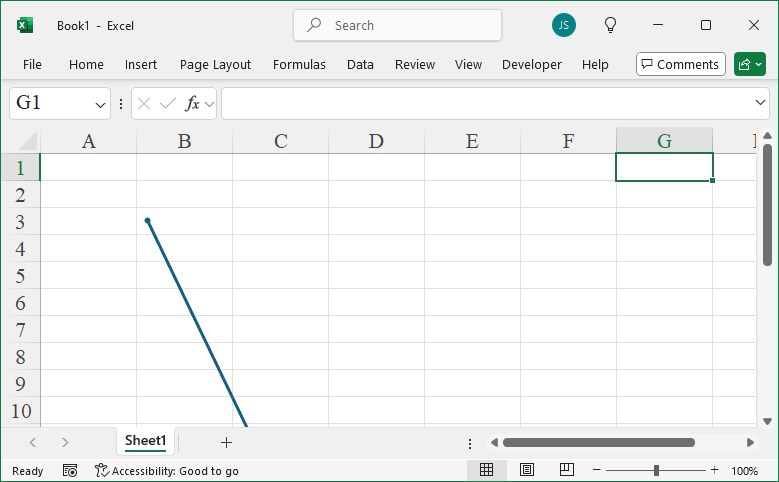

How To Set Line Properties Using xlwings? – Arrows

Method

You can set the line’s color using the `ForeColor` property of the `LineFormat` object. The color can be set using various methods, including RGB, theme colors, and color schemes.



You can set the line style using the `DashStyle` property of the `LineFormat` object. The available line styles are:



Name	Value	Description
msoLineDash	4	Dashed line
msoLineDashDot	5	Dash-dot line
msoLineDashDotDot	6	Dash-dot-dot line
msoLineDashStyleMixed	-2	Not supported
msoLineLongDash	7	Long dashed line
msoLineLongDashDot	8	Long dash-dot line
msoLineRoundDot	3	Round dotted line
msoLineSolid	1	Solid line
msoLineSquareDot	2	Square dotted line



You can set the line width using the `Weight` property. This is a single value that determines the thickness of the line.



shp=sht.api.Shapes.AddLine(80, 50, 200, 300)    #Create a line segment Shape object

lf=shp.Line    #Get the line shape object

lf.Weight=2    #Line width

lf.BeginArrowheadLength=1    #Arrow length at the start point

lf.BeginArrowheadStyle=6    #Arrow style at the start point

lf.BeginArrowheadWidth=1    #Arrow width at the start point

lf.EndArrowheadLength=3    #Arrow length at the endpoint

lf.EndArrowheadStyle=2    #Arrow style at the endpoint

lf.EndArrowheadWidth=3    #Arrow width at the endpoint

Sample Code

#Line properties - Arrow

import xlwings as xw    #Import xlwings package

app=xw.App()
bk=app.books.active   #Get the active workbook
sht=bk.sheets.active    #Get the active worksheet

shp=sht.api.Shapes.AddLine(80, 50, 200, 300)    #Create a line segment Shape object
lf=shp.Line    #Get the line shape object
lf.Weight=2    #Line width
lf.BeginArrowheadLength=1    #Arrow length at the start point
lf.BeginArrowheadStyle=6    #Arrow style at the start point
lf.BeginArrowheadWidth=1    #Arrow width at the start point
lf.EndArrowheadLength=3    #Arrow length at the endpoint
lf.EndArrowheadStyle=2    #Arrow style at the endpoint
lf.EndArrowheadWidth=3    #Arrow width at the endpoint

#bk.save()
#bk.close()
#app.kill()

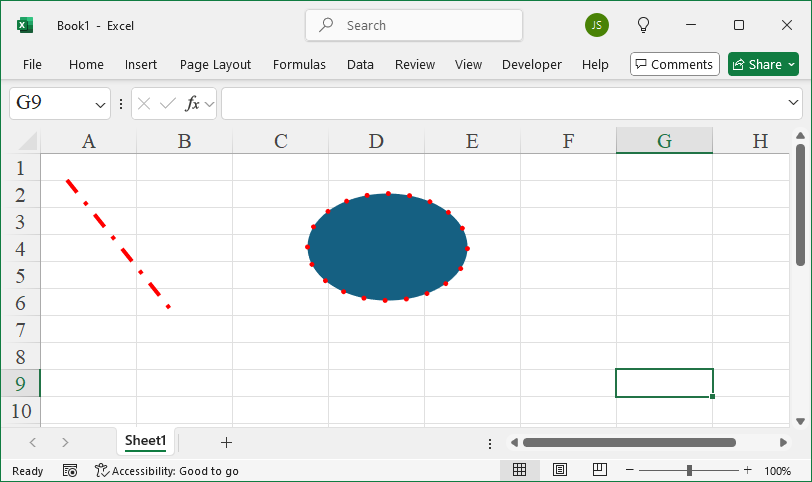

How To Set Line Properties Using xlwings? – Color, Line Style, and Line Width

Method

In Excel, line objects are represented by the `LineFormat` object. The `Line` property of a `Shape` object returns a `LineFormat` object. For example, a straight line, the borders of a rectangle, and a circular region are all represented as `LineFormat` objects.



Once you have the `LineFormat` object, you can use its properties and methods to set various attributes like color, line style, line width, arrows, transparency, and pattern fill.



shp=sht.api.Shapes.AddLine(20, 20, 100, 120)

lf=shp.Line

lf.ForeColor.RGB=xw.utils.rgb_to_int((255,0,0))    #Red

lf.DashStyle=5    #Line style, dotted line

lf.Weight=3    #Line width



shp2=sht.api.Shapes.AddShape(9, 200, 30, 120, 80)

#Line shape in elliptical area, i.e., the boundary of the area

lf2=shp2.Line

lf2.ForeColor.RGB=xw.utils.rgb_to_int((255,0,0))    #Red

lf2.DashStyle=3    #Line style, dotted line with circles

lf2.Weight=4    #Line width

Sample Code

#Line properties

import xlwings as xw    #Import xlwings package

app=xw.App()
bk=app.books.active   #Get the active workbook
sht=bk.sheets.active    #Get the active worksheet

shp=sht.api.Shapes.AddLine(20, 20, 100, 120)
lf=shp.Line
lf.ForeColor.RGB=xw.utils.rgb_to_int((255,0,0))    #Red
lf.DashStyle=5    #Line style, dotted line
lf.Weight=3    #Line width

shp2=sht.api.Shapes.AddShape(9, 200, 30, 120, 80)
#Line shape in elliptical area, i.e., the boundary of the area
lf2=shp2.Line
lf2.ForeColor.RGB=xw.utils.rgb_to_int((255,0,0))    #Red
lf2.DashStyle=3    #Line style, dotted line with circles
lf2.Weight=4    #Line width

#bk.save()
#bk.close()
#app.kill()

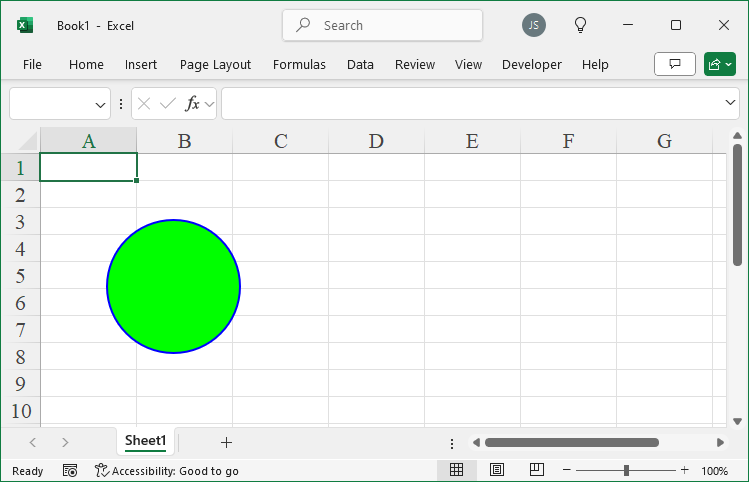

How To Set Color Using xlwings? – Scheme Colors

Method

Excel provides a set of colors from its color scheme that can be used to fill graphical objects. For graphical objects, the `ForeColor` and `BackColor` properties return a `ColorFormat` object, which includes a `SchemeColor` property. Each color in the color scheme has an index number, which can be assigned to the `SchemeColor` property.



shp=sht.api.Shapes.AddShape(9, 50, 50, 100, 100)

shp.Fill.ForeColor.SchemeColor=3

shp.Line.ForeColor.SchemeColor=4

Sample Code

#Color - Scheme color

import xlwings as xw    #Import xlwings package

app=xw.App()
bk=app.books.active   #Get the active workbook
sht=bk.sheets.active    #Get the active worksheet

shp=sht.api.Shapes.AddShape(9, 50, 50, 100, 100)
shp.Fill.ForeColor.SchemeColor=3
shp.Line.ForeColor.SchemeColor=4

#bk.save()
#bk.close()
#app.kill()

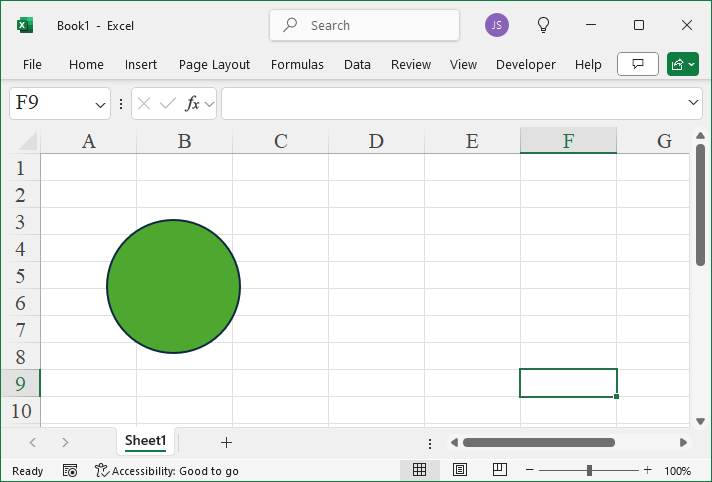

How To Set Color Using xlwings? – Theme Colors

Method



shp=sht.api.Shapes.AddShape(9, 50, 50, 100, 100)

shp.Fill.ForeColor.ObjectThemeColor=10

shp.Line.ForeColor.ObjectThemeColor=3

Sample Code

#Color - Theme color

import xlwings as xw    #Import xlwings package

app=xw.App()
bk=app.books.active   #Get the active workbook
sht=bk.sheets.active    #Get the active worksheet

shp=sht.api.Shapes.AddShape(9, 50, 50, 100, 100)
shp.Fill.ForeColor.ObjectThemeColor=10
shp.Line.ForeColor.ObjectThemeColor=3

#bk.save()
#bk.close()
#app.kill()

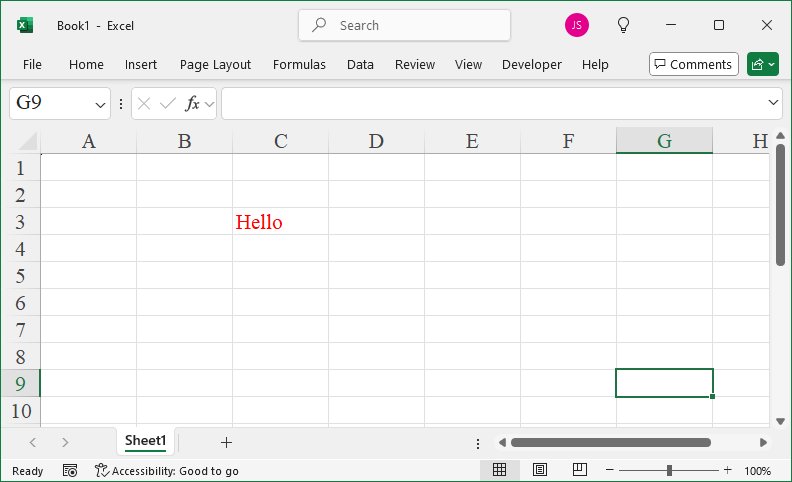

How To Set Color Using xlwings? – Indexed Coloring

Method

Indexed coloring involves using a predefined set of colors, known as a color lookup table, where each color has a unique index number, as shown in the diagram. To apply indexed coloring, simply assign an index number to the corresponding indexed color property.





sht.api.Range(“C3”).Font.ColorIndex=3

sht.api.Range(“C3″).Value=”Hello”

Sample Code

#Color - Index color

import xlwings as xw    #Import xlwings package

app=xw.App()
bk=app.books.active   #Get the active workbook
sht=bk.sheets.active    #Get the active worksheet

sht.api.Range("C3").Font.ColorIndex=3
sht.api.Range("C3").Value="Hello"

#bk.save()
#bk.close()
#app.kill()

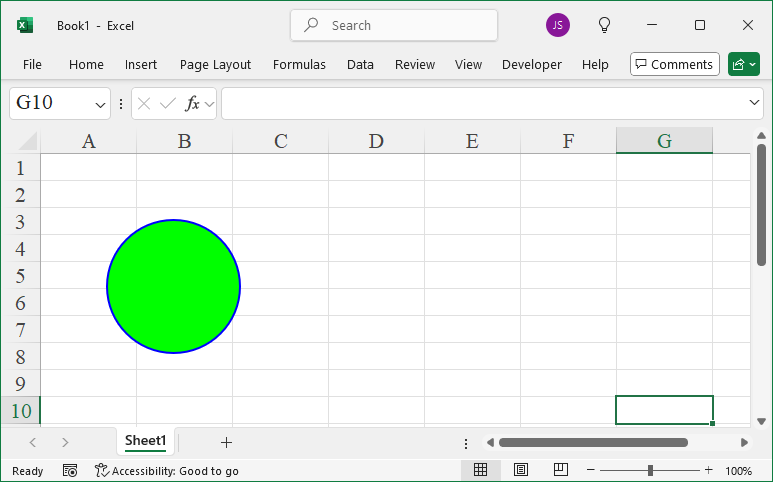

How To Set Color Using xlwings? – RGB

Method

RGB color shading defines a color using the red, green, and blue components. You can set RGB color shading using the `Color` property of graphical objects. If you’re accustomed to specifying RGB components to set the color, you can use the `rgb_to_int` method from the `xlwings.utils` class to convert an RGB tuple, such as (255, 0, 0), into an integer, which can then be assigned to the `Color` property.

shp=sht.api.Shapes.AddShape(9, 50, 50, 100, 100)

shp.Fill.ForeColor.RGB=xw.utils.rgb_to_int((0, 255,0))

shp.Line.ForeColor.RGB=xw.utils.rgb_to_int((0,0,255))

shp.Line.ForeColor.RGB=16711680    # or 0x0000FF

Sample Code

#Color - RGB

import xlwings as xw    #Import xlwings package

app=xw.App()
bk=app.books.active   #Get the active workbook
sht=bk.sheets.active    #Get the active worksheet

shp=sht.api.Shapes.AddShape(9, 50, 50, 100, 100)
#shp.Fill.ForeColor.RGB=xw.utils.rgb_to_int((0, 255,0))
shp.Line.ForeColor.RGB=xw.utils.rgb_to_int((0,0,255))

shp.Fill.ForeColor.RGB=0x0000FF    # or 16711680

#bk.save()
#bk.close()
#app.kill()

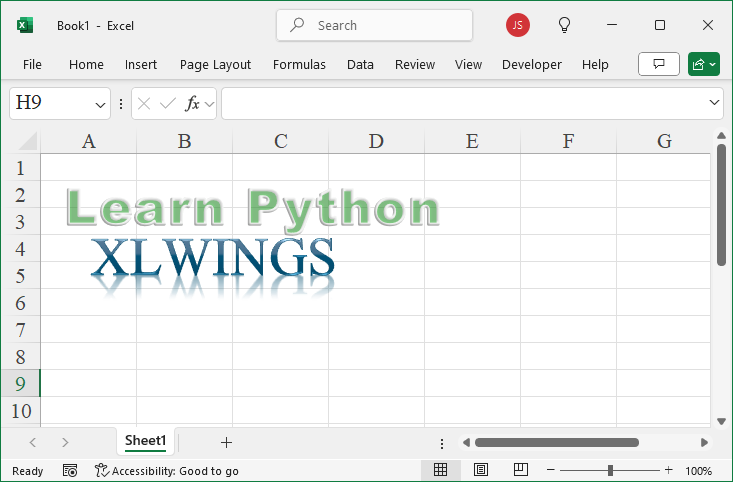

How To Create WordArt Using xlwings?

Method

Use the `AddTextEffect` method of the `Shapes` object to create WordArt. The syntax is:

sht.api.Shapes.AddTextEffect(PresetTextEffect,Text,FontName,FontSize,FontBold,FontItalic, Left, Top)

Where `sht` is the current worksheet. The parameters are explained in the table below.

sht.api.Shapes.AddTextEffect(9,’Learn Python’,’Arial Black’,36,False,False,10,10)

sht.api.Shapes.AddTextEffect(29,’xlwings’,’Times New Roman’,40,False,False,30,50)

Sample Code

#Drawing WordArt

import xlwings as xw    #Import xlwings package

app=xw.App()
bk=app.books.active   #Get the active workbook
sht=bk.sheets.active    #Get the active worksheet

sht.api.Shapes.AddTextEffect(9,'Learn Python','Arial Black',36,False,False,10,10)
sht.api.Shapes.AddTextEffect(29,'xlwings','Times New Roman',40,False,False,30,50)

#bk.save()
#bk.close()
#app.kill()
