How To Create Dot Chart Using xlChart+ Add-in?

Flowing these steps to create dot chart:

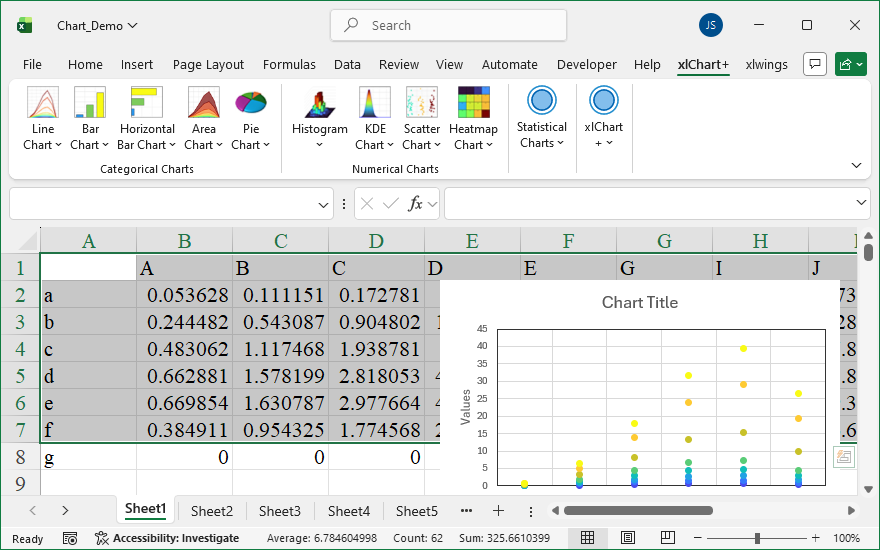

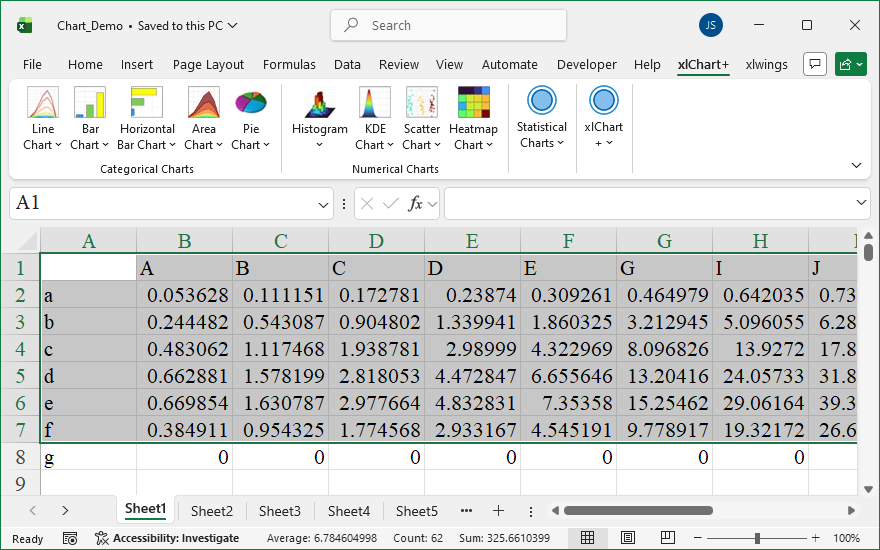

First, select data in the worksheet.

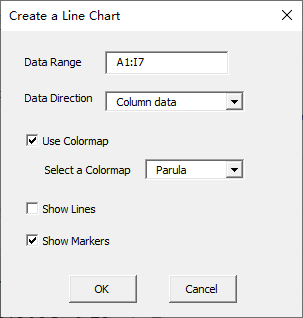

Click “2D Line Chart” item in “Line Chart” menu in xlChart+ add-in, open “Create a Line Chart” dialog box.

Click “OK” button.

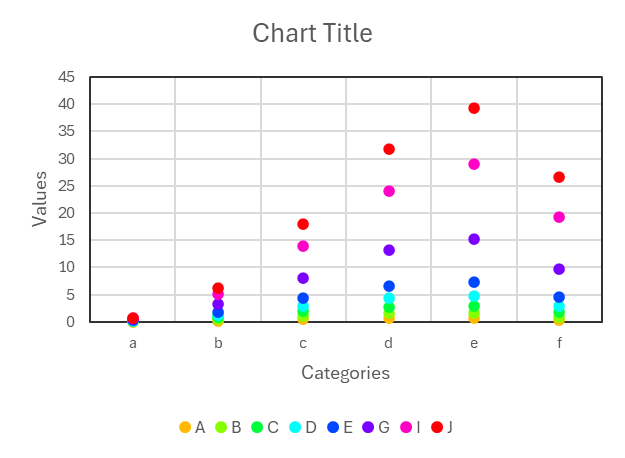

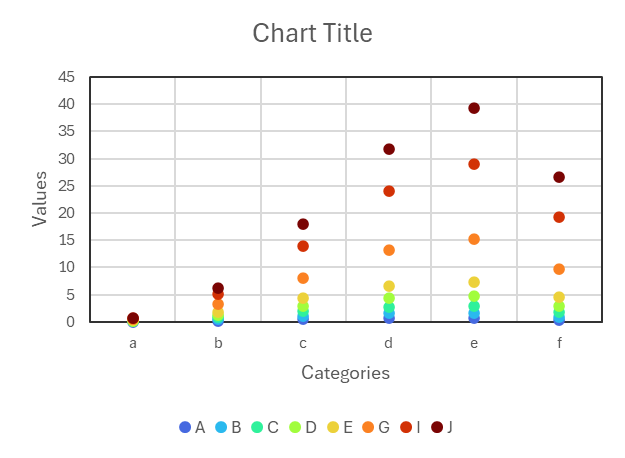

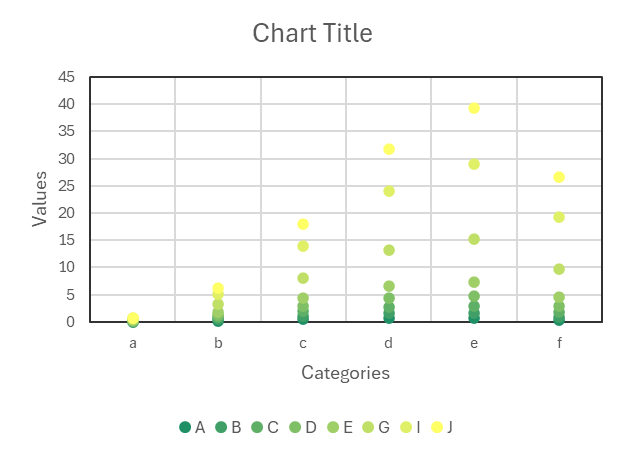

You can change the colormap by selecting another item in “Select a colormap” dropbox in “Create a Line Chart” dialog box.

xlChart+
March 29, 2026 (0)

What Is xlChart+ Add-in?

xlChart+ add-in helps you create common charts faster with one-click color schemes. Create histograms, KDE plots, jitter scatter plots, heatmaps, violin plots, raincloud plots, and other charts that Excel doesn’t have.

Main Features

One-Click Color Schemes

Apply professional color palettes to your charts instantly

Beautiful Pre-designed Palettes

Choose from dozens of carefully crafted color schemes designed by professionals. Each palette is optimized for clarity, accessibility, and visual appeal. Transform your charts from basic to stunning with a single click.

  • 20+ professional color palettes
  • Colorblind-friendly options
  • Custom palette creator
Various chart types with different color schemes

2D & 3D Histograms

Visualize data distributions with advanced histogram charts

2D and 3D histogram visualizations

Advanced Distribution Analysis

Create sophisticated 2D and 3D histograms that Excel can’t produce natively. Perfect for statistical analysis, data exploration, and presenting frequency distributions with professional polish.

  • Customizable bin sizes
  • 3D visualization support
  • Overlay multiple distributions

2D & 3D KDE Plots

Kernel Density Estimation for smooth probability distributions

Smooth Density Visualization

Generate beautiful Kernel Density Estimation plots that show the probability density function of your data. Perfect for understanding data distribution patterns and identifying peaks, valleys, and outliers.

  • Multiple kernel functions
  • Adjustable bandwidth
  • 3D surface plots
KDE plots including 2D and 3D surface visualizations

Jitter Scatter Plots & Regular Scatter Plots

Reveal patterns in your data with advanced scatter plot techniques

Jitter scatter plots and regular scatter plots

Enhanced Scatter Visualization

Create jitter scatter plots that prevent overlapping points, making it easier to see data density. Perfect for categorical data and revealing patterns that traditional scatter plots might hide.

  • Automatic jitter adjustment
  • Size and color mapping
  • Trend line overlays

Heatmaps

Visualize complex data matrices with intuitive color gradients

Matrix Data Visualization

Transform complex data matrices into intuitive heatmaps. Perfect for correlation analysis, time-series data, and identifying patterns across multiple variables at a glance.

  • Hierarchical clustering
  • Custom color scales
  • Annotation support
Heatmaps with various color schemes

Violin Plots & Raincloud Plots

Advanced statistical visualization for distribution comparison

Violin plots, boxplots, and raincloud plots

Rich Distribution Insights

Combine the best of box plots, density plots, and scatter plots. Violin plots show the full distribution shape, while raincloud plots add individual data points for complete transparency.

  • Show full data distribution
  • Compare multiple groups
  • Statistical annotations
xlChart+
March 29, 2026 (0)

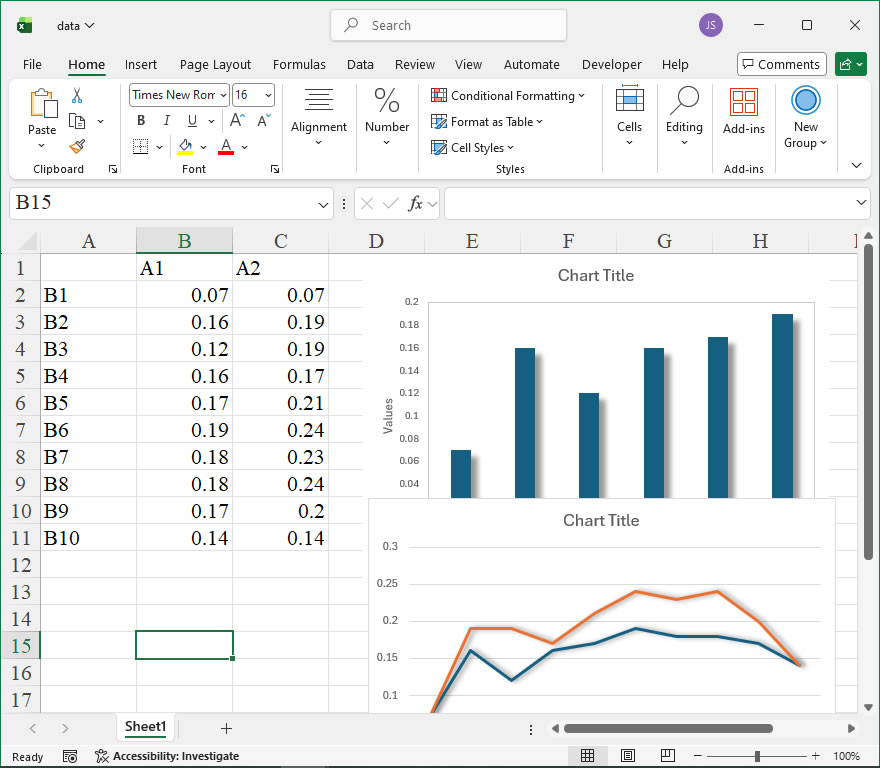

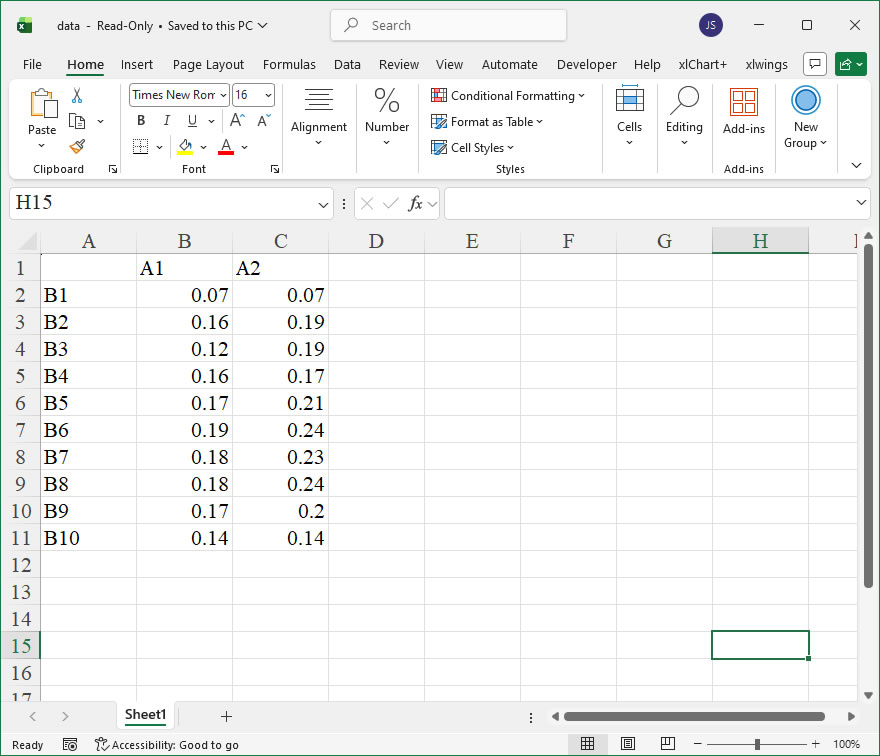

How To Set Effects: Glow Using xlwings?

【Example】

【Code】

import xlwings as xw
import os

def set_style(cht):
    cht.ChartArea.Format.Line.Visible=False
    cht.PlotArea.Format.Fill.Visible=False
    cht.PlotArea.Format.Line.Visible=True
    cht.PlotArea.Format.Line.ForeColor.RGB=xw.utils.rgb_to_int((200,200,200))
    #cht.PlotArea.Format.Line.ForeColor.ObjectThemeColor = msoThemeColorText1
    ax1=cht.Axes(1)
    ax2=cht.Axes(2)
    ax1.HasTitle=True
    ax1.AxisTitle.Text='Categories'
    ax1.AxisTitle.Font.Size=10
    ax1.TickLabels.Font.Size=8
    #ax1.TickLabels.NumberFormat='0.00'
    ax1.HasMajorGridlines=False
    ax2.HasTitle=True
    ax2.AxisTitle.Text='Values'
    ax2.AxisTitle.Font.Size=10
    ax2.TickLabels.Font.Size=8
    ax2.HasMajorGridlines=False
    cht.HasTitle=True
    #cht.ChartTitle.Caption='Plot'
    #cht.ChartTitle.Font.Size=12

root=os.getcwd()
app=xw.App(visible=True,add_book=False)
wb=app.books.open(root+r'/data.xlsx',read_only=False)
sht=wb.sheets('Sheet1')

sht.api.Range('A2:B7').Select()  #数据
shp=sht.api.Shapes.AddChart2(-1,xw.constants.ChartType.xlColumnClustered,20,20,350,250,True)
cht=shp.Chart  #添加图表
shadow=cht.SeriesCollection(1).Format.Shadow
shadow.Type=21
shadow.Visible=True
shadow.Style=2    #msoShadowStyleOuterShadow
shadow.Blur=4
shadow.OffsetX=4.9497474683
shadow.OffsetY=4.9497474683
shadow.RotateWithShape=False
shadow.ForeColor.RGB=xw.utils.rgb_to_int((0,0,0))
shadow.Transparency=0.599999994
shadow.Size=100

sht.api.Range('A2:C11').Select()  #数据
shp2=sht.api.Shapes.AddChart2(-1, xw.constants.ChartType.xlLine, 30, 20, 350, 250, True)
cht2=shp2.Chart  #添加图表
cht2.SeriesCollection(1).Format.Shadow.Type=24
cht2.SeriesCollection(2).Format.Shadow.Type=24

set_style(cht)

cht.Export(root+'/cht.jpg')
cht.Export(root+'/cht.svg')
cht.ExportAsFixedFormat(0,root+'/cht.pdf')
cht2.Export(root+'/cht2.jpg')
cht2.Export(root+'/cht2.svg')
cht2.ExportAsFixedFormat(0,root+'/cht2.pdf')

#wb.save()
#app.kill()
xlwings-Chart
March 28, 2026 (0)

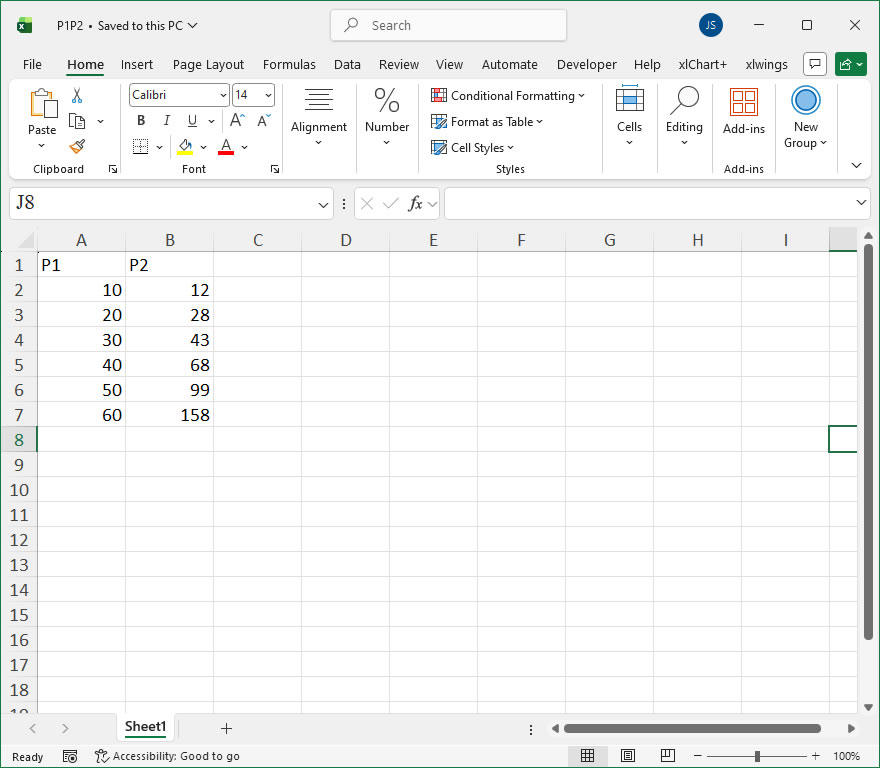

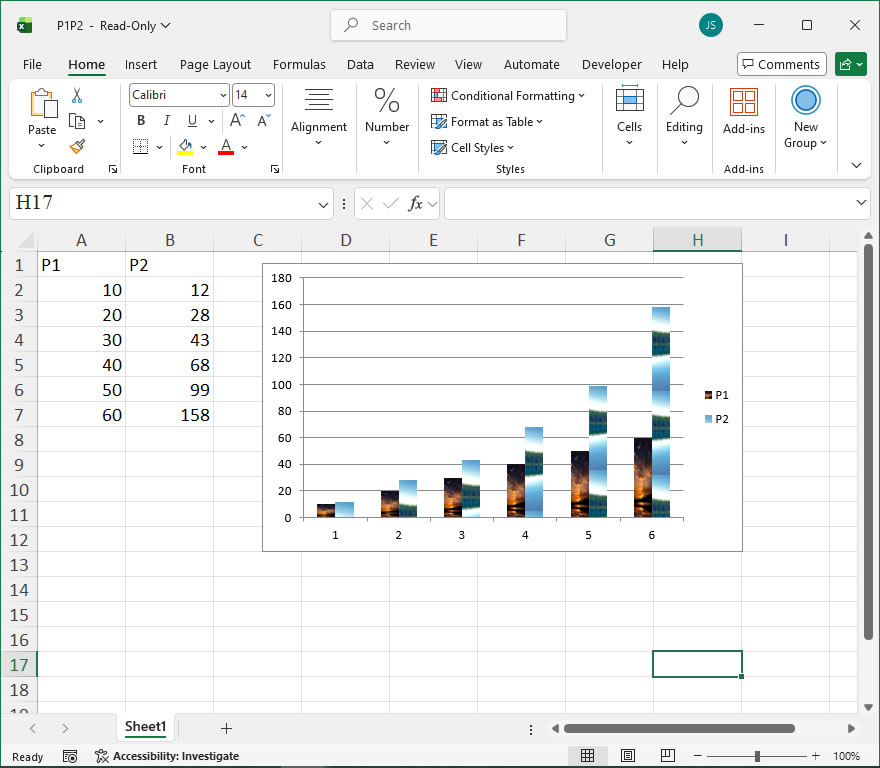

How To Set Picture/Texture Fill for Areas Using xlwings?

【Method】

FillFormat object

  • UserPicture method
  • UserTextured method

sht.api.Range(‘A1:B7’).Select()

cht=sht.api.Shapes.AddChart().Chart

ser=cht.SeriesCollection(‘P1’)      #First series

ff=ser.Format.Fill

ff.UserPicture(root+r’/picpy.jpg’)

ser2=cht.SeriesCollection(‘P2’)      #Second series

ff2=ser2.Format.Fill

ff2.UserTextured(root+r’/picpy2.jpg’)

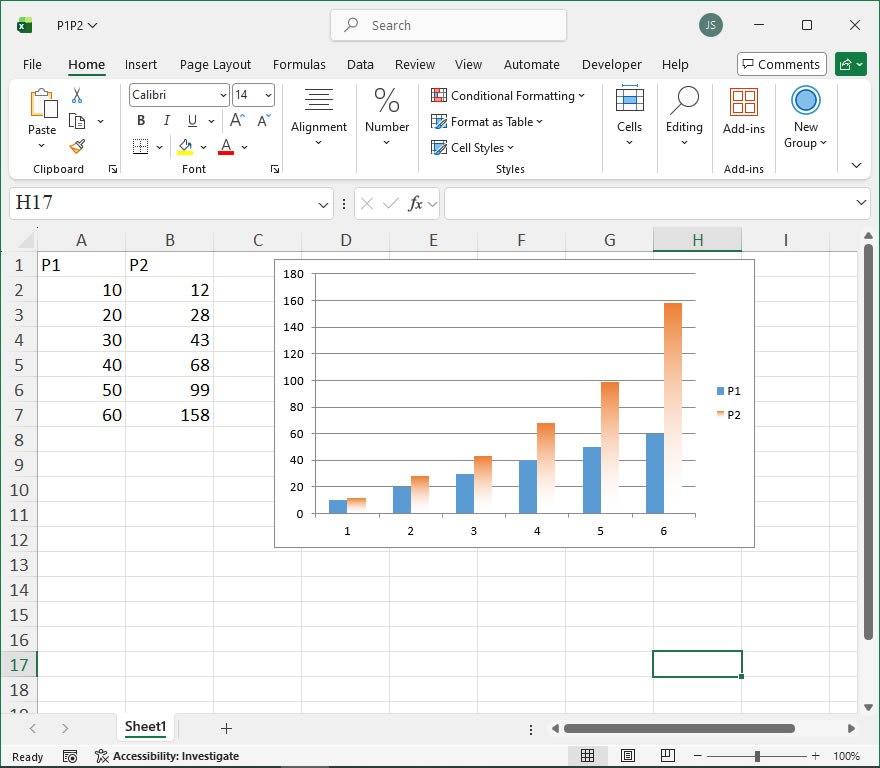

【Example】

【Code】

#Area settings - Picture and texture fill

import xlwings as xw
import os

root = os.getcwd()
app = xw.App(visible=True, add_book=False)
wb=app.books.open(root+r'/P1P2.xlsx',read_only=False)
sht=wb.sheets(1)

sht.api.Range('A1:B7').Select()
cht=sht.api.Shapes.AddChart().Chart
ser=cht.SeriesCollection('P1')      #First series
ff=ser.Format.Fill
ff.UserPicture(root+r'/picpy.jpg')
ser2=cht.SeriesCollection('P2')      #Second series
ff2=ser2.Format.Fill
ff2.UserTextured(root+r'/picpy2.jpg')

#wb.save()
#wb.close()
#app.kill()
xlwings-Chart
March 27, 2026 (0)

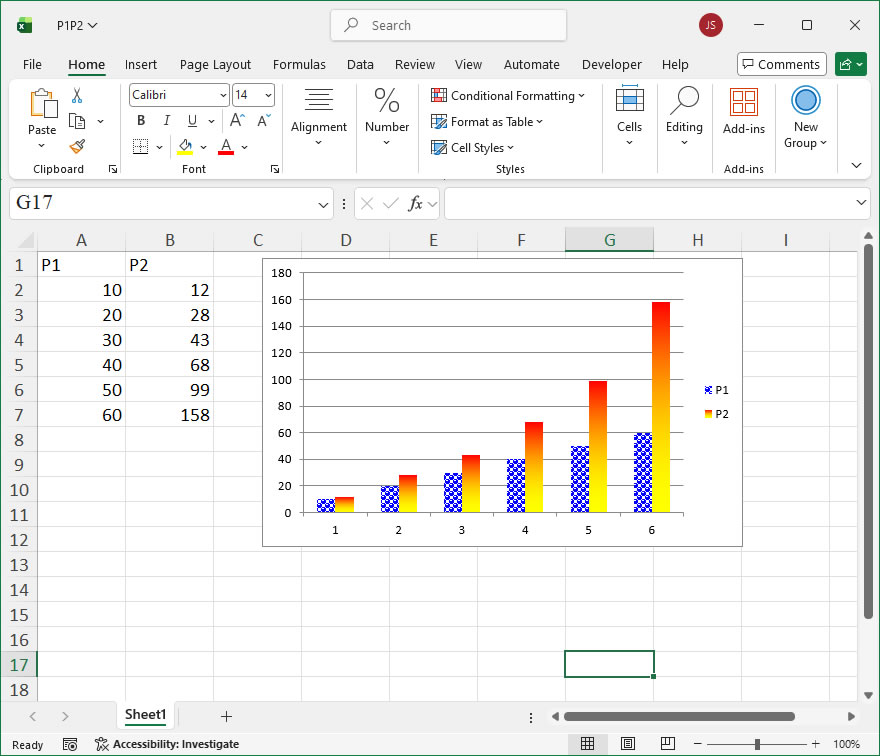

How To Set Pattern Fill for Areas Using xlwings?

【Method】

FillFormat object

  • Patterned method

sht.api.Range(‘A1:B7’).Select()

cht=sht.api.Shapes.AddChart().Chart

ser=cht.SeriesCollection(‘P1’)      #First series

ff=ser.Format.Fill

ff.ForeColor.RGB=xw.utils.rgb_to_int((0,0,255))

ff.Patterned(43)

ser2=cht.SeriesCollection(‘P2’)      #Second series

ff2=ser2.Format.Fill

ff2.ForeColor.RGB=xw.utils.rgb_to_int((255,0,0))

ff2.TwoColorGradient(1,1)

ff2.BackColor.RGB=xw.utils.rgb_to_int((255,255,0))

【Example】

【Code】

#Area settings - Two-color gradient and pattern fill

import xlwings as xw
import os

root = os.getcwd()
app = xw.App(visible=True, add_book=False)
wb=app.books.open(root+r'/P1P2.xlsx',read_only=False)
sht=wb.sheets(1)

sht.api.Range('A1:B7').Select()
cht=sht.api.Shapes.AddChart().Chart
ser=cht.SeriesCollection('P1')      #First series
ff=ser.Format.Fill
ff.ForeColor.RGB=xw.utils.rgb_to_int((0,0,255))
ff.Patterned(43)
ser2=cht.SeriesCollection('P2')      #Second series
ff2=ser2.Format.Fill
ff2.ForeColor.RGB=xw.utils.rgb_to_int((255,0,0))
ff2.TwoColorGradient(1,1)
ff2.BackColor.RGB=xw.utils.rgb_to_int((255,255,0))

#wb.save()
#wb.close()
#app.kill()
xlwings-Chart
March 27, 2026 (0)

How To Set Transparency and Color Fill of Areas Using xlwings?

【Method】

By referencing the `Format.Fill` property of the Series object, a `FillFormat` object is returned, representing the area object in the series. The members of the `FillFormat` object can be used to set properties for the area object.

– Transparency property

– ForeColor property

– OneColorGradient method

– TwoColorGradient method

– Solid method

sht.api.Range(‘A1:B7’).Select()

cht=sht.api.Shapes.AddChart().Chart

ser=cht.SeriesCollection(‘P1’)    #First series

ff=ser.Format.Fill

ff.Transparency=0.7

ser2=cht.SeriesCollection(‘P2’)    #Second series

ff2=ser2.Format.Fill

ff2.OneColorGradient(1,1,1)

【Example】

【Code】

#Area settings - Transparency and solid gradient

import xlwings as xw
import os

root = os.getcwd()
app = xw.App(visible=True, add_book=False)
wb=app.books.open(root+r'/P1P2.xlsx',read_only=False)
sht=wb.sheets(1)

sht.api.Range('A1:B7').Select()
cht=sht.api.Shapes.AddChart().Chart
ser=cht.SeriesCollection('P1')    #First series
ff=ser.Format.Fill
ff.Transparency=0.7
ser2=cht.SeriesCollection('P2')    #Second series
ff2=ser2.Format.Fill
ff2.OneColorGradient(1,1,1)

#wb.save()
#wb.close()
#app.kill()
xlwings-Chart
March 26, 2026 (0)

How To Set Properties of Line Graphic Elements Using xlwings?

【Method】

By referencing the `Format.Line` property of a Series object, a `LineFormat` object is returned, representing the line object in the series. The members of the `LineFormat` object are used to set the line properties.

sht.api.Range(‘A1:B7’).Select()

cht=sht.api.Shapes.AddChart().Chart

ser2=cht.SeriesCollection(‘P2’)    #Second series

ser2.ChartType=xw.constants.ChartType.xlLine    #Line chart

ser2.Smooth=True    #Smooth processing

ser2.MarkerStyle=xw.constants.MarkerStyle.xlMarkerStyleTriangle    #Markers

ser2.MarkerForegroundColor=xw.utils.rgb_to_int((0,0,255))    #Color

ser2.HasDataLabels=True    #Data labels

【Example】


【Code】

#Line chart element settings

import xlwings as xw
import os

root = os.getcwd()
app = xw.App(visible=True, add_book=False)
wb=app.books.open(root+r'/P1P2.xlsx',read_only=False)
sht=wb.sheets(1)

sht.api.Range('A1:B7').Select()
cht=sht.api.Shapes.AddChart().Chart
ser2=cht.SeriesCollection('P2')    #Second series
ser2.ChartType=xw.constants.ChartType.xlLine    #Line chart
ser2.Smooth=True    #Smooth processing
ser2.MarkerStyle=xw.constants.MarkerStyle.xlMarkerStyleTriangle    #Markers
ser2.MarkerForegroundColor=xw.utils.rgb_to_int((0,0,255))    #Color
ser2.HasDataLabels=True    #Data labels
ser=cht.SeriesCollection('P1')
ser.Format.Fill.ForeColor.RGB=xw.utils.rgb_to_int((0,255,0))
ser.Format.Fill.ForeColor.ObjectThemeColor=10
ser.Format.Fill.ForeColor.SchemeColor=3
ser2.Format.Line.DashStyle=4
ser2.Format.Line.ForeColor.RGB=xw.utils.rgb_to_int((0,0,255))

#wb.save()
#wb.close()
#app.kill()
xlwings-Chart
March 26, 2026 (0)

How To Set Chart Colors Using xlwings?

【Method】

sht.api.Range(‘A1:B7’).Select()

cht=sht.api.Shapes.AddChart().Chart

ser2=cht.SeriesCollection(‘P2’)    #Second series

ser2.ChartType=xw.constants.ChartType.xlLine    #Line chart

ser2.Smooth=True    #Smooth processing

ser2.MarkerStyle=xw.constants.MarkerStyle.xlMarkerStyleTriangle    #Markers

ser2.MarkerForegroundColor=xw.utils.rgb_to_int((0,0,255))    #Color

ser2.HasDataLabels=True    #Data labels

ser=cht.SeriesCollection(‘P1’)

ser.Format.Fill.ForeColor.RGB=xw.utils.rgb_to_int((0,255,0))

ser.Format.Fill.ForeColor.ObjectThemeColor=10

ser.Format.Fill.ForeColor.SchemeColor=3

【Example】


【Code】

#Color Settings

import xlwings as xw
import os

root = os.getcwd()
app = xw.App(visible=True, add_book=False)
wb=app.books.open(root+r'/P1P2.xlsx',read_only=False)
sht=wb.sheets(1)

sht.api.Range('A1:B7').Select()
cht=sht.api.Shapes.AddChart().Chart
ser2=cht.SeriesCollection('P2')    #Second series
ser2.ChartType=xw.constants.ChartType.xlLine    #Line chart
ser2.Smooth=True    #Smooth processing
ser2.MarkerStyle=xw.constants.MarkerStyle.xlMarkerStyleTriangle    #Markers
ser2.MarkerForegroundColor=xw.utils.rgb_to_int((0,0,255))    #Color
ser2.HasDataLabels=True    #Data labels
ser=cht.SeriesCollection('P1')
ser.Format.Fill.ForeColor.RGB=xw.utils.rgb_to_int((0,255,0))
#ser.Format.Fill.ForeColor.ObjectThemeColor=10
#ser.Format.Fill.ForeColor.SchemeColor=3

#wb.save()
#wb.close()
#app.kill()
xlwings-Chart
March 25, 2026 (0)

How To Show Data With Conditional Formating Data Bars Using xlwings?

Method

rng=sht.Range(‘A1:A15’)

rng.FormatConditions.Delete()



rng.FormatConditions.AddDatabar()

Sample Code

#Conditional Formatting - Data Bars

import xlwings as xw    #Import xlwings
import os    #Import os

root = os.getcwd()    #Get current path
#Create Excel application window, visible, no workbook added
app=xw.App(visible=True, add_book=False)
#Open data file, writable
bk=app.books.open(fullname=root+r'\cf.xlsx',read_only=False)
#Get data worksheet
sht=bk.api.Sheets(1)

rng=sht.Range('A1:A15')
rng.FormatConditions.Delete()

rng.FormatConditions.AddDatabar()

#bk.save()
#bk.close()
#app.kill()
Show Data With Conditional Formating Data Bars Using xlwings
xlwings-Conditional Formatting
March 10, 2026 (0)

How To Refresh a Pivot Table Using xlwings?

Method

def modify_data():

    #Modify data source

    sht_data.range(‘F2′).value=’China’



def update():

    #Refresh pivot table

    pvt=sht_pvt.api.PivotTables(‘Pivot’)

    pvt.RefreshTable()

Sample Code

#Refresh Pivot Table

import xlwings as xw    #Import xlwings
import os    #Import os

root = os.getcwd()    #Get current path
#Create Excel application window, visible, no workbook added
app=xw.App(visible=True, add_book=False)
#Open data file, writable
bk=app.books.open(fullname=root+r'\Pivot.xlsx',read_only=False)
#Get data source worksheet
sht_data=bk.sheets.active
#Data cell range
rng_data=sht_data.api.Range('A1').CurrentRegion
#Create a new worksheet for the pivot table
sht_pvt=bk.sheets.add()
sht_pvt.name='Pivot Table'

def create_pivot_table():
    #Location of data
    rng_data=sht_data.api.Range('A1').CurrentRegion
    #Location of pivot table
    rng_pvt=sht_pvt.api.Range('A1')

    #Create pivot table cache
    pvc=bk.api.PivotCaches().Create(\
          SourceType=xw.constants.PivotTableSourceType.xlDatabase,\
          SourceData=rng_data)
    #Create pivot table
    pvt=pvc.CreatePivotTable(\
          TableDestination=rng_pvt,\
          TableName='Pivot')

    #Set fields
    pvt.PivotFields('Category').Orientation=\
        xw.constants.PivotFieldOrientation.xlPageField    #Page fields
    pvt.PivotFields('Category').Position=1
    pvt.PivotFields('Product').Orientation=\
        xw.constants.PivotFieldOrientation.xlColumnField    #Column fields
    pvt.PivotFields('Product').Position=1
    pvt.PivotFields('Origin').Orientation=\
        xw.constants.PivotFieldOrientation.xlRowField    #Row fields
    pvt.PivotFields('Origin').Position=1
    pvt.PivotFields('Amount').Orientation=\
        xw.constants.PivotFieldOrientation.xlDataField    #Value fields

def modify_data():
    #Modify data source
    sht_data.range('F2').value='China'

def update():
    #Refresh pivot table
    pvt=sht_pvt.api.PivotTables('Pivot')
    pvt.RefreshTable()


create_pivot_table()
modify_data()
update()

#bk.save()
#bk.close()
#app.kill()
Refresh a Pivot Table Using xlwings
xlwings-Pivot Table
March 10, 2026 (0)
